Uni-app通过WebView加载网页文件显示海康h5player直播视频
3
2025-01-02
Uni-app通过WebView加载网页文件显示海康h5player直播视频
简介
海康的 ws 协议视频流在 uniapp 中使用很多方法实现，但播放效果并不理想；要么加载缓慢，要么卡顿，大多情况是根本无法播放。
网页端通过海康的官方 h5player 效果就还不错；于是把 h5player 放到 uniapp 中试一下， H5 平台是可以直接嵌入并进行播放的，但到了 Android 端就不行了。到处搜罗，最后找到了通过 html 页面调用 h5player 播放视频链接，然后通过 WebView 加载 html 文件来达到使用 h5player 播放视频流的功能。
下载需要的文件
需要分别下载h5player.js文件包和uni.webview.js，其中uni.webview.js用于在 uniapp 中 WebView 与 网页程序之间的通讯。
h5player.js 文件：海康开放平台 (hikvision.com) 下载【H5视频播放器开发包】
uni.webview.js 文件：web-view | uni-app官网 (dcloud.io) 找到【uni.webview.js】下载最新版本

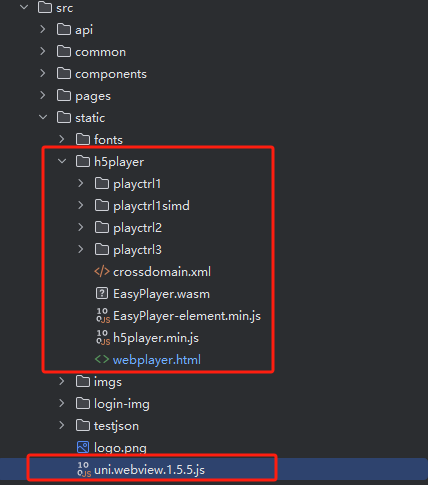

下载后把文件拷贝到 uniapp 项目的src/static目录下。
HTML文件 webplayer.html
同样在src/static目录创建 webplayer.html 文件。
<html>
<head>
<meta charset="utf-8">
<meta name=viewportcontent="width=device-width,initial-scale=1,maximum-scale=1,minimum-scale=1,user-scalable=no,minimal-ui">
<meta name="referrer" content="no-referrer">
<title>海康视频监控</title>
<script src="./h5player.min.js"></script>
<script type="text/javascript" src="../uni.webview.1.5.5.js"></script>
<style type="text/css">
html,
body {
width: 100%;
height: 100%;
margin: auto;
overflow: hidden;
background-color: #FFFFFF;
-webkit-user-select: none;
user-select: none;
}
.myplayer {
width: 100%;
height: 100%;
background-color: #000000;
}
</style>
</head>
<body>
<div id="player" class="myplayer"></div>
<script>
function getQueryVariable(variable)
{
var query = window.location.search.substring(1);
var vars = query.split("&");
for (var i=0;i<vars.length;i++) {
var pair = vars[i].split("=");
if(pair[0] == variable){return pair[1];}
}
return(false);
}
const player = new window.JSPlugin({
szId: 'player',
szBasePath: "./",
iMaxSplit: 1,
iCurrentSplit: 1,
openDebug: true,
oStyle: {
borderSelect: '#000',
}
});
const mode = true;
let index = 0, playURL = getQueryVariable('url');
player.JS_Play(playURL, { playURL, mode }, index).then(
() => {
player.JS_FullScreenDisplay(true).then(
() => { console.log(`wholeFullScreen success`) },
e => {
console.error(e)
}
)
},
e => {
console.error(e) ;
alert('视频设备连接失败，请稍后再试');
uni.postMessage({data: {msg: 'back'}});
}
);
</script>
</body>
</html>
uniapp 播放程序 playApp.vue
<template>
<ly-container class="use_rpx">
<template #header>
<ly-statu-bar title="监测视频"></ly-statu-bar>
</template>
<div>
<div class='flex_column g_bgcolor_white g_radius2 g_pad10l g_mar12b g_mar12t'
style='width:97vw;height:12vh;margin-left: 1.5vw;'>
<div class='flex1'></div>
<div class="flex2 g_color_desc">项目名称</div>
<div class='flex1'></div>
<div class='flex2 g_color_text_main'>{{this.entryName || '-'}}</div>
<div class='flex1'></div>
</div>
<div class='flex_column g_bgcolor_white g_radius2 g_pad10l g_mar12b'
style='width:97vw;height:12vh;margin-left: 1.5vw;'>
<div class='flex1'></div>
<div class="flex2 g_color_desc">监控位置</div>
<div class='flex1'></div>
<div class='flex2 g_color_text_main'>{{this.videoName || '-'}}</div>
<div class='flex1'></div>
</div>
<div class='flex_column g_bgcolor_white g_radius2 g_pad10l'
style='width:97vw;height:70vw;margin-left: 1.5vw;'>
<div class='flex1'></div>
<div class="flex1 g_color_desc">监控视频</div>
<div class='flex1'></div>
<web-view v-if="showVideo" class="videoContainer" id="xgplayer" :src="htmlUrl" @message="receiveData"></web-view>
<div class='flex1'></div>
</div>
</div>
</ly-container>
</template>
<script>
import {
getVideoUrls
} from "@/api/video";
export default {
data() {
return {
wsUrl: '',
cameraIndexCode: '',
videoName:'',
entryName:'',
showVideo: false,
htmlUrl: '/static/h5player/webplayer.html',
}
},
mounted () {
this.videoName=uni.getStorageSync("videoName");
this.entryName=uni.getStorageSync("entryName");
},
onLoad(param) {
if (param && param.cameraIndexCode) {
this.cameraIndexCode = param.cameraIndexCode
this.getVideoUrls()
}
},
methods: {
getVideoUrls() {
getVideoUrls(this.cameraIndexCode).then(res => {
this.wsUrl = res.data;
this.htmlUrl = `/static/h5player/webplayer.html?url=${this.wsUrl}`;
this.showVideo = true;
})
},
receiveData (data) {
console.log("收到来自webview的消息：", data)
if (data && data.detail && data.detail.data && data.detail.data.length > 0) {
for (let i = 0; i < data.detail.data.length; i++) {
if (data.detail.data[i].msg && data.detail.data[i].msg === 'back') {
uni.navigateBack({});
}
}
}
},
}
}
</script>
<style scoped>
.videoContainer {
width: 100%;
height: 100%;
}
</style>
参考
